Spray Fireproofing Systems for Steel, Commercial, & Industrial Buildings

Intumescent, Cementitious & Sprayed Fiber Fireproofing for Steel Application

Life safety plays a vital role in the design of buildings in today’s commercial & industrial construction. Sprayed-on fireproofing systems provide a cost-effective approach to meet the hourly ratings required by local building codes and insurance companies. Fireproofing systems provide up to a four-hour rating on structural members, helping to prevent steel from collapsing during a fire.

Fireproofing is a passive form of protection that is always ready to protect the steel and ultimately lives in the event of a fire. Passive systems are constantly in place as opposed to active systems, such as sprinklers, which are required to activate before they perform.

Spray-applied fireproofing products are the most common types of fireproofing materials. Spray-applied fireproofing can either be cementitious fireproofing (typically gypsum-based, wet mix formulation) or sprayed fiber fireproofing (mineral wool fiber with a Portland cement-based binder, dry mix formulation).

Spray-applied materials come in standard density for concealed applications and medium or high density for exposed applications where the fireproofing is constantly subject to abuse and/or moisture.

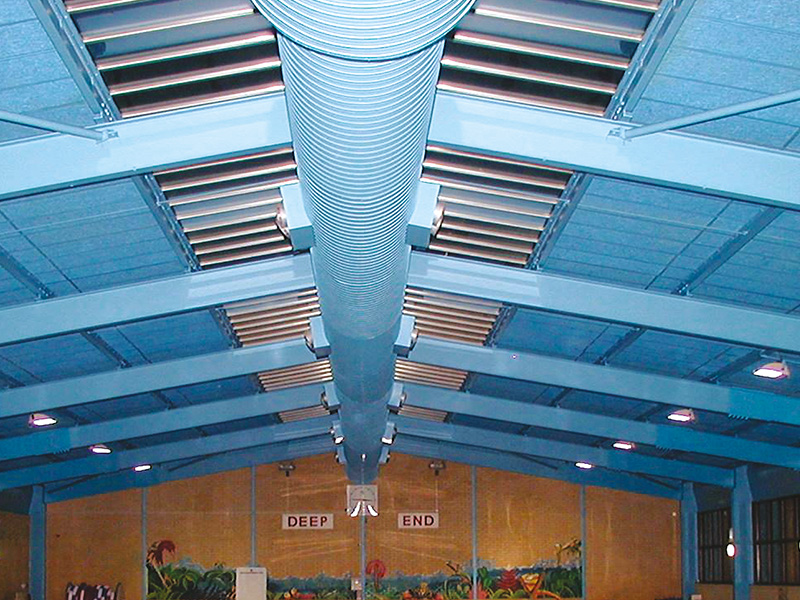

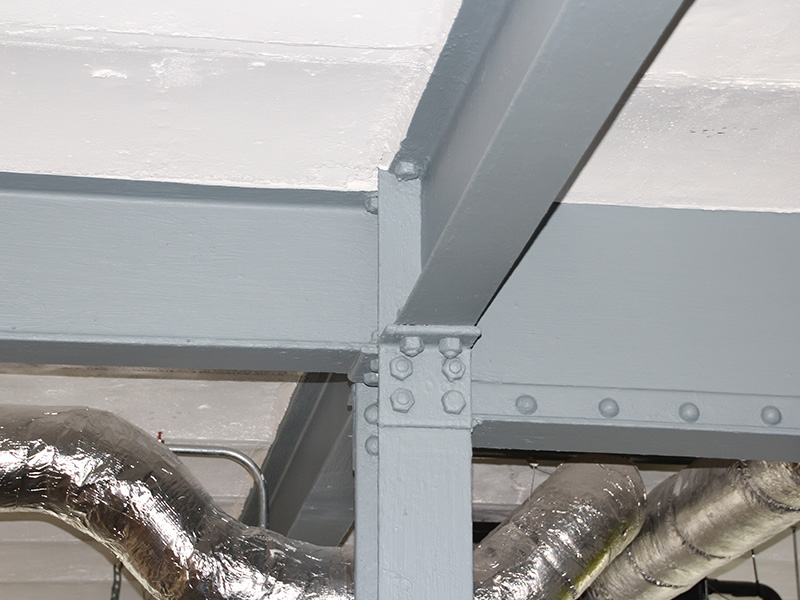

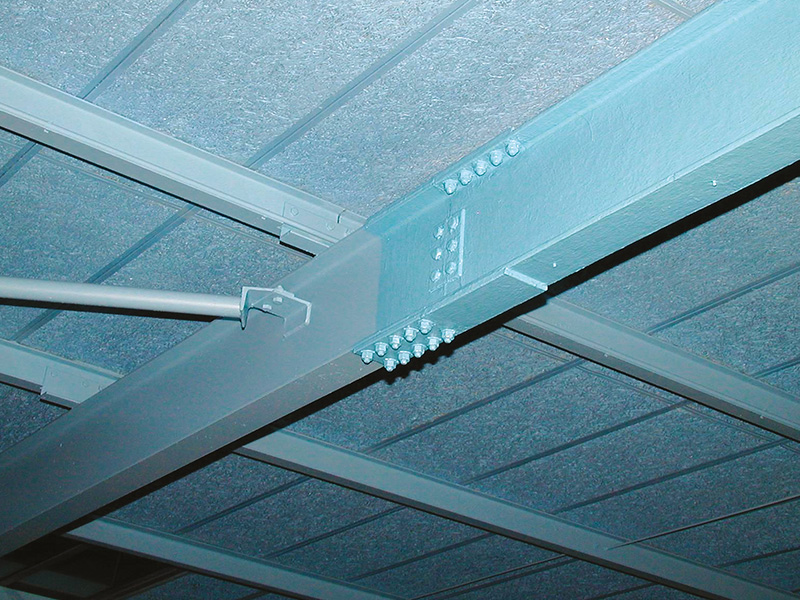

Intumescent Spray Fireproofing

Intumescent coatings are becoming increasingly popular for achieving a fire rating on exposed structural steel. Intumescent fireproofing is thin film coating designed for exposed applications where appearance is of primary importance. This fireproofing comes in solvent- and water-based formulations and provides up to a three-hour rating on beams and columns.

These coatings can be used for interior and exterior fireproofing applications, providing the owner and architect with an aesthetically pleasing way to fireproof structural steel. The product can be top coated with a tinted coating to match almost any desired color.

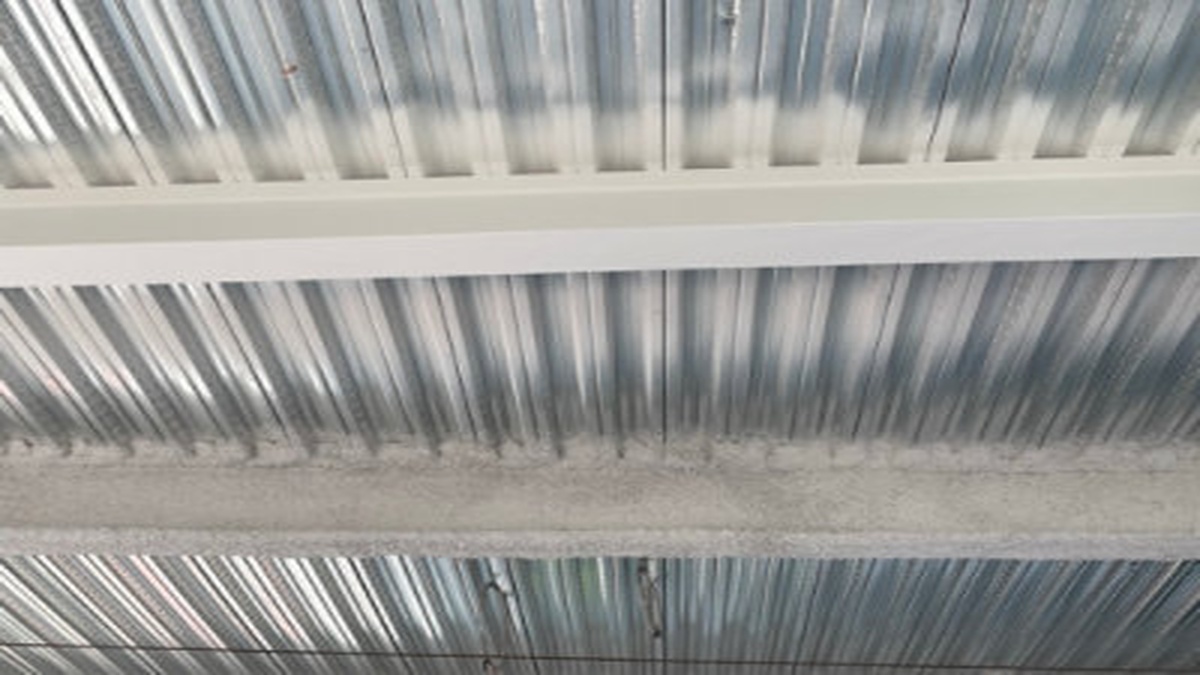

Cementitious Fireproofing Spray

Made from a mixture of cement or gypsum, plus other materials like sand that act as an aggregate, cementitious fireproofing products offer strength and durability reminiscent of concrete while being light enough to spray into place. Installed in several layers, cementitious fireproofing provides an extremely heat-resistant coating to beams, columns and other structural steel elements.

While it is very strong, cementitious fireproofing can crack with expansion and contraction, similar to concrete, plus it is porous and the space between the coating and the steel structure can provide a place for moisture to collect. This makes cementitious fireproofing best for use in indoor spaces, where moisture will be less of an issue. For moisture-prone areas, intumescent coatings may be the better choice. iFOAM Insulation has experience with low-, medium-, and high-density cementitious fireproofing spray, and can apply the perfect solution to your project.

Sprayed Fiber Fireproofing for Steel, Commercial & Industrial Buildings

Made from mineral wool or fiberglass fibers combined with materials like sand, perlite or vermiculite, plus a cement or gypsum binder, sprayed fiber fireproofing offers excellent protection for steel beams, steel columns, structural concrete, wall surfaces, and more. It is lighter than cementitious products while providing similar performance. Once it cures, it offers a strong, durable coating.

Due to its fiber content, sprayed fiber fireproofing also offers some insulation and air-sealing capabilities. This makes it ideal for sealing small cracks and gaps in the outer envelope while simultaneously providing a passive fireproofing layer.

Contact us at (623) 303-0650 or online to schedule your free consultation.
